短柄机用和手用丝锥

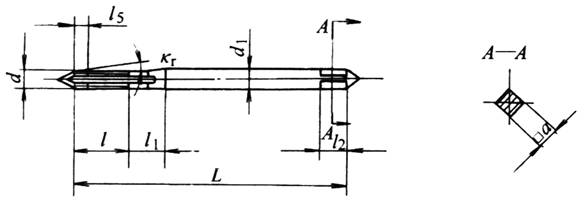

粗短柄机用和手用丝锥
|
粗短柄机用和手用丝锥 (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
|
||||||||
|
代号 |
公称直径d |
d1 |
螺距P |
l |
l1 |
L |
方头 |
|
|
a |
l2 |
|||||||
|
M1 |
1.0 |
2.5 |
0.25 |
5.5 |
28 |
4.5 |
2.00 |
4 |
|
M1.1 |
1.1 |
|||||||
|
M1.2 |
1.2 |
|||||||
|
M1.4 |
1.4 |
0.30 |
7.0 |
5.0 |
||||
|
M1.6 |
1.6 |
0.35 |
8.0 |
32 |
||||
|
M1.8 |
1.8 |
|||||||
|
M2 |
2.0 |
0.40 |
36 |
5.5 |
||||
|
M2.2 |
2.2 |
2.8 |
0.45 |
9.5 |
6.0 |
2.24 |
5 |
|
|
M2.5 |
2.5 |
|||||||
|
M1×0.2 |
1.0 |
2.5 |
0.2 |
5.5 |
28 |
4.5 |
2.00 |
4 |
|
M1.1×0.2 |
1.1 |
|||||||
|
M1.2×0.2 |
1.2 |
|||||||
|
M1.4×0.2 |
1.4 |
7.0 |
5.0 |
|||||
|
M1.6×0.2 |
1.6 |
8.0 |
32 |
|||||
|
M1.8×0.2 |
1.8 |
|||||||
|
M2×0.25 |
2.0 |
0.25 |
36 |
5.5 |
||||
|
M2.2×0.25 |
2.2 |
2.8 |
9.5 |
6.0 |
2.24 |
5 |
||
|
M2.5×0.35 |
2.5 |
0.35 |
||||||

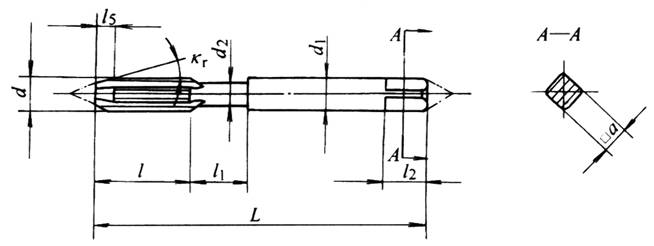

粗短柄带颈短柄机用和手用丝锥
|
粗短柄带颈短柄机用和手用丝锥 (mm) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||
|
代号 |
公称直径 d |
d1 |
d2 min |
螺距P |
l |
l1 |
L |
方头 |
|
|
a |
l2 |
||||||||
|
M3 |
3.0 |
3.15 |
2.12 |
0.50 |
11.0 |
7.0 |
40 |
2.50 |
5 |
|
M3.5 |
3.5 |
3.55 |
2.50 |
(0.60) |
13.0 |
2.80 |
|||
|
M4 |
4.0 |
4.00 |
2.80 |
0.70 |
8.0 |
45 |
3.15 |
6 |
|
|
M4.5 |
4.5 |
4.50 |
3.15 |
(0.75) |
3.55 |
||||
|
M5 |
5.0 |
5.00 |
3.55 |
0.80 |
16.0 |
9.0 |
50 |
4.00 |
7 |
|
M6 |
6.0 |
6.30 |
4.50 |
1.00 |
19.0 |
11.0 |
55 |
5.00 |
8 |
|
M7 |
7.0 |
7.10 |
5.30 |
5.60 |
|||||
|
M8 |
8.0 |
8.00 |
6.00 |
1.25 |
22.0 |
13.0 |
65 |
6.30 |
9 |
|
M9 |
9.0 |
9.00 |
7.10 |
14.0 |
7.10 |
10 |
|||
|
M10 |
10.0 |
10.00 |
7.50 |
1.50 |
24.0 |
15.0 |
70 |
8.0 |
11 |
|
M3×0.35 |
3.0 |
3.15 |
2.12 |
0.35 |
11.0 |
7.0 |
40 |
2.50 |
5 |
|
M3.5×0.35 |
3.5 |
3.55 |
2.50 |
13.0 |
2.80 |
||||
|
M4×0.5 |
4.0 |
4.00 |
2.80 |
0.50 |
8.0 |
45 |
3.15 |
6 |
|
|
M4.5×0.5 |
4.5 |
4.50 |
3.15 |
3.55 |
|||||
|
M5×0.5 |
5.0 |
5.00 |
3.55 |
16.0 |
9.0 |
50 |
4.00 |
7 |
|
|
M5.5×0.5 |
5.5 |
5.60 |
4.00 |
17.0 |
4.50 |
||||
|
M6×0.5 |
6.0 |
6.30 |
4.50 |
19.0 |
11.0 |
5.00 |
8 |
||
|
M6×0.75 |
0.75 |
||||||||
|
M7×0.75 |
7.0 |
7.10 |
5.30 |
5.60 |
|||||
|
M8×0.5 |
8.0 |
8.00 |
6.00 |
0.50 |
13.0 |
60 |
6.30 |
9 |
|
|
M8×0.75 |
0.75 |
||||||||
|
M8×1 |
1.00 |
22.0 |
|||||||
|
M9×0.75 |
9.0 |
9.00 |
7.10 |
0.75 |
19.0 |
14.0 |
7.10 |
10 |
|
|
M9×1 |
1.00 |
22.0 |
|||||||
|
M10×0.75 |
10.0 |
10.00 |
7.50 |
0.75 |
20.0 |
15.0 |
65 |
8.00 |
11 |
|
M10×1 |
1.00 |
24.0 |
|||||||
|
M10×1.25 |
1.25 |
||||||||

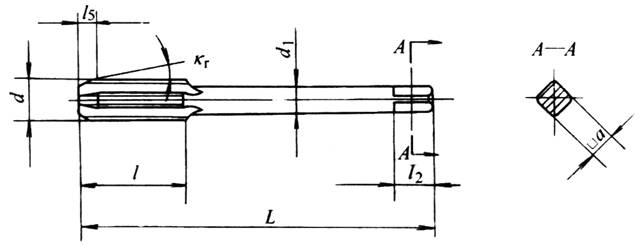

细短柄机用和手用丝锥
|
细短柄机用和手用丝锥 (mm) |
|||||||
|---|---|---|---|---|---|---|---|
|
|
|||||||
|
代号 |
公称直径 d |
d1 |
螺距P |
L |
l |
方头 |
|
|
a |
l2 |
||||||
|
M3 |
3.0 |
2.24 |
0.50 |
40 |
11.0 |
1.80 |
4 |
|
M3.5 |
3.5 |
2.50 |
(0.60) |
13.0 |
2.00 |
||
|
M4 |
4.0 |
3.15 |
0.70 |
45 |
2.50 |
5 |
|
|
M4.5 |
4.5 |
3.55 |
(0.75) |
2.80 |
|||
|
M5 |
5.0 |
4.00 |
0.80 |
50 |
16.0 |
3.15 |
6 |
|
M6 |
6.0 |
4.50 |
1.00 |
55 |
19.0 |
3.55 |
|
|
M7 |
(7.0) |
5.60 |
4.50 |
7 |
|||
|
M8 |
8.0 |
6.30 |
1.25 |
65 |
22.0 |
5.00 |
8 |
|
M9 |
(9.0) |
7.10 |
5.60 |
||||
|
M10 |
10.0 |
8.00 |
1.50 |
70 |
24.0 |
6.30 |
9 |
|
M11 |
(11.0) |
25.0 |
|||||
|
M12 |
12.0 |
9.00 |
1.75 |
80 |
29.0 |
7.10 |
10 |
|
M14 |
14.0 |
11.20 |
2.00 |
90 |
30.0 |
9.00 |
12 |
|
M16 |
16.0 |
12.50 |
32.0 |
10.00 |
13 |
||
|
M18 |
18.0 |
14.00 |
2.50 |
100 |
37.0 |
11.20 |
14 |
|
M20 |
20.0 |
||||||
|
M22 |
22.0 |
16.00 |
110 |
38.0 |
12.50 |
16 |
|
|
M24 |
24.0 |
18.00 |
3.00 |
120 |
45.0 |
14.00 |
18 |
|
M27 |
27.0 |
20.00 |
16.00 |
20 |
|||
|
M30 |
30.0 |
3.50 |
130 |
48.0 |
|||
|
M33 |
33.0 |
22.40 |
51.0 |
18.00 |
22 |
||
|
M36 |
36.0 |
25.00 |
4.00 |
145 |
57.0 |
20.00 |
24 |
|
M39 |
39.0 |
28.00 |
60.0 |
22.40 |
26 |
||
|
M42 |
42.0 |
4.50 |
160 |
||||
|
M45 |
45.0 |
31.50 |
67.0 |
25.00 |
28 |
||
|
M48 |
48.0 |
5.00 |
175 |
25.00 |
28 |
||
|
M52 |
52.0 |
35.50 |
70.0 |
28.00 |
31 |
||
|
M3×0.35 |
3.0 |
2.24 |
0.35 |
40 |
11.0 |
1.80 |
4 |
|
M3.5×0.35 |
3.5 |
2.50 |
13.0 |
2.00 |
|||
|
M4×0.5 |
4.0 |
3.15 |
0.50 |
45 |
2.50 |
5 |
|
|
M4.5×0.5 |
4.5 |
3.55 |
2.80 |
||||
|
M5×0.5 |
5.0 |
4.00 |
50 |
16.0 |
3.15 |
6 |
|
|
M5.5×0.5 |
(5.5) |
17.0 |
|||||
|
M6×0.75 |
6.0 |
4.50 |
0.75 |
19.0 |
3.55 |
||
|
M7×0.75 |
(7.0) |
5.60 |
4.50 |
7 |
|||
|
M8×0.75 |
8.0 |
6.30 |
60 |
5.00 |
8 |
||
|
M8×1 |
1.00 |
22.0 |
|||||
|
M9×0.75 |
(9.0) |
7.10 |
0.75 |
19.0 |
5.60 |
8 |
|
|
M9×1 |
1.00 |
22.0 |
|||||
|
M10×0.75 |
10.0 |
8.00 |
0.75 |
65 |
20.0 |
6.30 |
9 |
|
M10×1 |
1.00 |
24.0 |
|||||
|
M10×1.25 |
1.25 |
||||||
|
M11×0.75 |
(11.0) |
0.75 |
22.0 |
||||
|
M11×1 |
1.00 |
||||||
|
M12×1 |
12.0 |
9.00 |
70 |
7.10 |
10 |
||
|
M12×1.25 |
1.25 |
29.0 |
|||||
|
M12×1.5 |
1.50 |
29.0 |
|||||
|
M14×1 |
14.0 |
11.20 |
1.00 |
22.0 |
9.00 |
12 |
|
|
M14×1.25 |
1.25 |
30.0 |
|||||
|
M14×1.5 |
1.50 |
30.0 |
|||||
|
M15×1.5 |
(15.0) |
||||||
|
M16×1 |
16.0 |
12.50 |
1.00 |
80 |
22.0 |
10.00 |
13 |
|
M16×1.5 |
1.50 |
32.0 |
|||||
|
M17×1.5 |
(17.0) |
||||||
|
M18×1 |
18.0 |
14.00 |
1.00 |
90 |
22.0 |
11.20 |
14 |
|
M18×1.5 |
1.50 |
37.0 |
|||||
|
M18×2 |
2.00 |
37.0 |
|||||
|
M20×1 |
20.0 |
1.00 |
22.0 |
||||
|
M20×1.5 |
1.50 |
37.0 |
|||||
|
M20×2 |
2.00 |
37.0 |
|||||
|
M22×1 |
22.0 |
16.0 |
1.00 |
24.0 |
12.5 |
16 |
|
|
M22×1.5 |
1.50 |
38.0 |
|||||
|
M22×2 |
2.00 |
38.0 |
|||||
|
M24×1 |
24.0 |
18.0 |
1.00 |
95 |
24.0 |
14.0 |
18 |
|
M24×1.5 |
1.50 |
45.0 |
|||||
|
M24×2 |
2.00 |
||||||
|
M25×1.5 |
25.0 |
1.50 |
|||||
|
M25×2 |
2.00 |
||||||
|
M26×1.5 |
26.0 |
1.50 |
35.0 |
||||
|
M27×1 |
27.0 |
20.0 |
1.00 |
25.0 |
16.0 |
20 |
|
|
M27×1.5 |
1.50 |
37.0 |
|||||
|
M27×2 |
2.00 |
||||||
|
M28×1 |
(28.0) |
1.00 |
105 |
25.0 |
|||
|
M28×1.5 |
1.50 |
37.0 |
|||||
|
M28×2 |
2.00 |
||||||
|
M30×1 |
30.0 |
1.00 |
25.0 |
||||
|
M30×1.5 |
1.50 |
37.0 |
|||||
|
M30×2 |
2.00 |
||||||
|
M30×3 |
3.00 |
48.0 |
|||||
|
M32×1.5 |
(32.0) |
22.4 |
1.50 |
115 |
37.0 |
18.0 |
22 |
|
M32×2 |
2.00 |
||||||
|
M33×1.5 |
33.0 |
1.50 |
|||||
|
M33×2 |
2.00 |
||||||
|
M33×3 |
3.00 |
51.0 |
|||||
|
M35×1.5 |
(35.0) |
25.0 |
1.50 |
125 |
39.0 |
20.0 |
24 |
|
M36×1.5 |
36.0 |
||||||
|
M36×2 |
2.00 |
||||||
|
M36×3 |
3.00 |
57.0 |
|||||
|
M38×1.5 |
38.0 |
28.0 |
1.50 |
130 |
39.0 |
22.4 |
26 |
|
M39×1.5 |
39.0 |
||||||
|
M39×2 |
2.00 |
||||||
|
M39×3 |
3.00 |
60.0 |
|||||
|
M40×1.5 |
(40.0) |
1.50 |
39.0 |
||||
|
M40×2 |
2.00 |
||||||
|
M40×3 |
3.00 |
60.0 |
|||||
|
M42×1.5 |
42.0 |
1.50 |
39.0 |
||||
|
M42×2 |
2.00 |
||||||
|
M42×3 |
3.00 |
60.0 |
|||||
|
M42×4 |
(4.00) |
||||||
|
M45×1.5 |
45.0 |
31.5 |
1.50 |
140 |
45.0 |
25.0 |
28 |
|
M45×2 |
2.00 |
||||||
|
M45×3 |
3.00 |
67.0 |
|||||
|
M45×4 |
(4.00) |
||||||
|
M48×1.5 |
48.0 |
31.5 |
1.50 |
150 |
45.0 |
25.0 |
28 |
|
M48×2 |
2.00 |
||||||
|
M48×3 |
3.00 |
67.0 |
|||||
|
M48×4 |
(4.00) |
||||||
|
M50×1.5 |
(50.0) |
1.50 |
45.0 |
||||
|
M50×2 |
2.00 |
||||||
|
M50×3 |
3.00 |
67.0 |
|||||
|
M52×1.5 |
52.0 |
35.5 |
1.50 |
45.0 |
28.0 |
31 |
|
|
M52×2 |
2.00 |
||||||
|
M52×3 |
3.00 |
70.0 |
|||||
|
M52×4 |
4.00 |
||||||
