轴用弹性挡圈 B型(GB/T 894—2017)
轴用弹性挡圈 B型(GB/T 894—2017)
|
轴用弹性挡圈 B型(GB/T 894—2017)mm |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||
|
规格 |
s |
d3 |
a |
n |
d5 |
千件重(钢制) |
安装工具规格 |
|||
|
最大值 |
最小值 |
公称 |
最大值 |
最小值 |
最大值 |
≈ |
最小值 |
|||
|
15 |
1.5 |
1.44 |
13.8 |
13.9 |
13.44 |
4.8 |
2.4 |
2 |
1.1 |
2 |
|
16 |
1.5 |
1.44 |
14.7 |
14.8 |
14.34 |
5 |
2.5 |
2 |
1.19 |
2 |
|
17 |
1.5 |
1.44 |
15.7 |
15.8 |
15.34 |
5 |
2.6 |
2 |
1.39 |
2 |
|
18 |
1.5 |
1.44 |
16.5 |
16.6 |
16.14 |
5.1 |
2.7 |
2 |
1.56 |
2 |
|
20 |
1.75 |
1.69 |
18.5 |
18.63 |
18.08 |
5.5 |
3 |
2 |
2.19 |
2 |
|
22 |
1.75 |
1.69 |
20.5 |
20.63 |
20.08 |
6 |
3.1 |
2 |
2.42 |
2 |
|
24 |
1.75 |
1.69 |
22.2 |
22.41 |
21.78 |
6.3 |
3.2 |
2 |
2.76 |
2 |
|
25 |
2 |
1.93 |
23.2 |
23.41 |
22.78 |
6.4 |
3.4 |
2 |
3.59 |
2 |
|
28 |
2 |
1.93 |
25.9 |
26.11 |
25.48 |
6.5 |
3.5 |
2 |
4.25 |
2 |
|
30 |
2 |
1.93 |
27.9 |
28.11 |
27.48 |
6.5 |
4.1 |
2 |
5.35 |
2 |
|
32 |
2 |
1.93 |
29.6 |
29.81 |
29.18 |
6.5 |
4.1 |
2.5 |
5.85 |
2.5 |
|
34 |
2.5 |
2.43 |
31.5 |
31.75 |
31 |
6.6 |
4.2 |
2.5 |
7.05 |
2.5 |
|
35 |
2.5 |
2.43 |
32.2 |
32.45 |
31.7 |
6.7 |
4.2 |
2.5 |
7.2 |
2.5 |
|
38 |
2.5 |
2.43 |
35.2 |
35.45 |
34.7 |
6.8 |
4.3 |
2.5 |
8.3 |
2.5 |
|
40 |
2.5 |
2.43 |
36.5 |
36.89 |
35.6 |
7 |
4.4 |
2.5 |
8.6 |
2.5 |
|
42 |
2.5 |
2.43 |
38.5 |
38.89 |
37.6 |
7.2 |
4.5 |
2.5 |
9.3 |
2.5 |
|
45 |
2.5 |
2.43 |
41.5 |
41.89 |
40.6 |
7.5 |
4.7 |
2.5 |
10.7 |
2.5 |
|
48 |
2.5 |
2.43 |
44.5 |
44.89 |
43.6 |
7.8 |
5 |
2.5 |
11.3 |
2.5 |
|
50 |
3 |
2.92 |
45.8 |
46.19 |
44.9 |
8 |
5.1 |
2.5 |
15.3 |
2.5 |
|
52 |
3 |
2.92 |
47.8 |
48.19 |
46.9 |
8.2 |
5.2 |
2.5 |
16.6 |
2.5 |
|
55 |
3 |
2.92 |
50.8 |
51.26 |
49.7 |
8.5 |
5.4 |
2.5 |
17.1 |
2.5 |
|
58 |
3 |
2.92 |
53.8 |
54.26 |
52.7 |
8.8 |
5.6 |
2.5 |
18.9 |
2.5 |
|
60 |
3 |
2.92 |
55.8 |
56.26 |
54.7 |
9 |
5.8 |
2.5 |
19.4 |
2.5 |
|
65 |
4 |
3.9 |
60.8 |
61.26 |
59.7 |
9.3 |
6.3 |
3 |
29.1 |
3 |
|
70 |
4 |
3.9 |
65.5 |
65.96 |
64.4 |
9.5 |
6.6 |
3 |
35.3 |
3 |
|
75 |
4 |
3.9 |
70.5 |
70.96 |
69.4 |
9.7 |
7 |
3 |
39.3 |
3 |
|
80 |
4 |
3.9 |
74.5 |
74.96 |
73.4 |
9.8 |
7.4 |
3 |
43.7 |
3 |
|
85 |
4 |
3.9 |
79.5 |
79.96 |
78.4 |
10 |
7.8 |
3.5 |
48.5 |
3.5 |
|
90 |
4 |
3.9 |
84.5 |
85.04 |
83.2 |
10.2 |
8.2 |
3.5 |
59.4 |
3.5 |
|
100 |
4 |
3.9 |
94.5 |
95.04 |
93.2 |
10.5 |
9 |
3.5 |
71.6 |
3.5 |

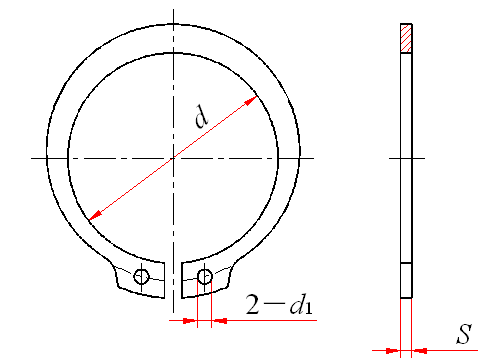

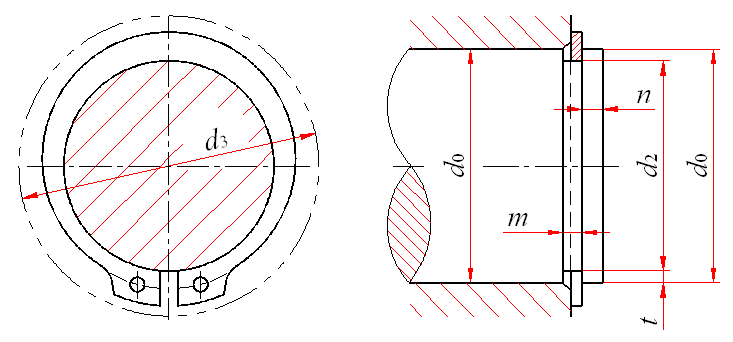

轴用弹性挡圈-B型(GB/T 894.2—1986)
|
轴用弹性挡圈-B型(GB/T894.2—1986)mm |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||||
|
标记示例： 轴径d0＝50mm、材料65Mn、热处理HRC44～51、经表面氧化处理的B型轴用弹性挡圈的标记： 挡圈 GB/T 894.2 50 |
||||||||||||
|
轴径 d0 |
挡 圈 |
沟 槽(推荐) |
孔 d3 ≥ |
千件重(钢制) |
||||||||
|
d |
S |
d1 |
d2 |
m |
n ≥ |
|||||||
|
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
基本尺寸 |
极限偏差 |
|||||
|
22 |
20.5 |
＋0.13 －0.42 |
1.75 |
0 －0.06 |
2 |
21 |
0 －0.13 |
1.85 |
＋0.14 0 |
1.5 |
34.6 |
1.20 |
|
24 |
22.2 |
＋0.21 －0.42 |
1.75 |
0 －0.06 |
2 |
22.9 |
0 －0.21 |
1.85 |
＋0.14 0 |
1.7 |
37.3 |
1.92 |
|
25 |
23.2 |
＋0.21 －0.42 |
2.0 |
0 －0.07 |
2 |
23.9 |
0 －0.21 |
2.15 |
＋0.14 0 |
1.7 |
38.5 |
2.00 |
|
28 |
25.9 |
＋0.21 －0.42 |
2.0 |
0 －0.07 |
2 |
26.6 |
0 －0.21 |
2.15 |
＋0.14 0 |
2.1 |
41.7 |
2.51 |
|
30 |
27.9 |
＋0.21 －0.42 |
2.0 |
0 －0.07 |
2 |
28.6 |
0 －0.21 |
2.15 |
＋0.14 0 |
2.1 |
43.7 |
2.73 |
|
32 |
29.6 |
＋0.21 －0.42 |
2.0 |
0 －0.07 |
2.5 |
30.3 |
0 －0.25 |
2.15 |
＋0.14 0 |
2.6 |
45.7 |
2.98 |
|
34 |
31.5 |
＋0.25 －0.50 |
2.5 |
0 －0.07 |
2.5 |
32.3 |
0 －0.25 |
2.65 |
＋0.14 0 |
2.6 |
47.9 |
4.31 |
|
35 |
32.2 |
＋0.25 －0.50 |
2.5 |
0 －0.07 |
2.5 |
33 |
0 －0.25 |
2.65 |
＋0.14 0 |
3 |
49.1 |
4.75 |
|
38 |
35.2 |
＋0.25 －0.50 |
2.5 |
0 －0.07 |
2.5 |
36 |
0 －0.25 |
2.65 |
＋0.14 0 |
3 |
52.3 |
5.65 |
|
40 |
36.5 |
＋0.39 －0.90 |
2.5 |
0 －0.07 |
2.5 |
37.5 |
0 －0.25 |
2.65 |
＋0.14 0 |
3.8 |
54.7 |
5.99 |
|
42 |
38.5 |
＋0.39 －0.90 |
2.5 |
0 －0.07 |
2.5 |
39.5 |
0 －0.25 |
2.65 |
＋0.14 0 |
3.8 |
57.2 |
6.18 |
|
45 |
41.5 |
＋0.39 －0.90 |
2.5 |
0 －0.07 |
2.5 |
42.5 |
0 －0.25 |
2.65 |
＋0.14 0 |
3.8 |
60.8 |
6.57 |
|
48 |
44.5 |
＋0.39 －0.90 |
2.5 |
0 －0.07 |
2.5 |
45.5 |
0 －0.25 |
2.65 |
＋0.14 0 |
3.8 |
64.4 |
6.96 |
|
50 |
45.8 |
＋0.39 －0.90 |
3 |
0 －0.08 |
2.5 |
47 |
0 －0.25 |
3.15 |
＋0.14 0 |
4.5 |
66.8 |
10.37 |
|
52 |
47.8 |
＋0.39 －0.90 |
3 |
0 －0.08 |
2.5 |
49 |
0 －0.25 |
3.15 |
＋0.14 0 |
4.5 |
69.3 |
10.77 |
|
55 |
50.8 |
＋0.46 －1.10 |
3 |
0 －0.08 |
2.5 |
52 |
0 －0.30 |
3.15 |
＋0.14 0 |
4.5 |
72.9 |
11.34 |
|
58 |
53.8 |
＋0.46 －1.10 |
3 |
0 －0.08 |
2.5 |
55 |
0 －0.30 |
3.15 |
＋0.14 0 |
4.5 |
76.5 |
13.44 |
|
60 |
55.8 |
＋0.46 －1.10 |
3 |
0 －0.08 |
2.5 |
57 |
0 －0.30 |
3.15 |
＋0.14 0 |
4.5 |
78.9 |
14.17 |
|
65 |
60.8 |
＋0.46 －1.10 |
4 |
0 －0.10 |
3 |
62 |
0 －0.30 |
4.15 |
＋0.14 0 |
4.5 |
84.6 |
19.04 |
|
70 |
65.5 |
＋0.46 －1.10 |
4 |
0 －0.10 |
3 |
67 |
0 －0.30 |
4.15 |
＋0.14 0 |
4.5 |
90.0 |
20.98 |
|
75 |
70.5 |
＋0.46 －1.10 |
4 |
0 －0.10 |
3 |
72 |
0 －0.30 |
4.15 |
＋0.14 0 |
4.5 |
95.4 |
22.56 |
|
80 |
74.5 |
＋0.46 －1.10 |
4 |
0 －0.10 |
3 |
76.5 |
0 －0.30 |
4.15 |
＋0.14 0 |
5.3 |
100.6 |
26.27 |
|
85 |
79.5 |
＋0.46 －1.10 |
4 |
0 －0.10 |
3.5 |
81.5 |
0 －0.35 |
4.15 |
＋0.14 0 |
5.3 |
106.0 |
28.02 |
|
90 |
84.5 |
＋0.54 －1.30 |
4 |
0 －0.10 |
3.5 |
86.5 |
0 －0.35 |
4.15 |
＋0.14 0 |
5.3 |
111.5 |
32.50 |
|
100 |
94.5 |
＋0.54 －1.30 |
4 |
0 －0.10 |
3.5 |
96.5 |
0 －0.35 |
4.15 |
＋0.14 0 |
5.3 |
122.1 |
44.94 |
