直角地脚螺栓(JB/ZQ 4364—1997)
直角地脚螺栓(JB/ZQ 4364—1997)
|

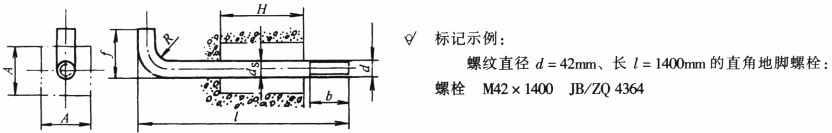

直角地脚螺栓(JB/ZQ 4364—1997) mm |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||
|
d |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
M56 |
||
|
ds |
16 |
20 |
24 |
30 |
36 |
42 |
48 |
56 |
||
|
b min |
45 |
60 |
75 |
90 |
110 |
120 |
140 |
160 |
||
|
f |
65 |
80 |
100 |
120 |
150 |
170 |
190 |
220 |
||
|
R ≈ |
12 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
||
|
A |
— |
100 |
130 |
160 |
180 |
|||||
|
H |
— |
200 |
300 |
400 |
500 |
|||||
|
l |
每个重量≈/kg |
|||||||||
|
300 |
0.54 |
|
|
|
|
|
|
|
||
|
400 |
0.70 |
1.1 |
|
|
|
|
|
|
||
|
600 |
|
1.6 |
2.3 |
|
|
|
|
|
||
|
800 |
|
2.1 |
3.0 |
|
|
|
|
|
||
|
1000 |
|
2.6 |
3.7 |
5.9 |
8.6 |
|
|
|
||
|
1200 |
|
|
4.4 |
7.0 |
10.3 |
|
|
|
||
|
1400 |
|
|
5.2 |
8.1 |
11.8 |
16.1 |
21.2 |
|
||
|
1600 |
|
|
|
9.2 |
13.4 |
18.3 |
24.0 |
|
||
|
1800 |
|
|
|
|
15.0 |
20.5 |
27.0 |
|
||
|
2000 |
|
|
|
|
16.7 |
22.7 |
29.6 |
41.3 |
||
|
2300 |
|
|
|
|
|
26.0 |
34.0 |
47.2 |
||
|
2600 |
|
|
|
|
|
|
38.0 |
53.0 |
||
|
技术条件 |
材料：Q235 |
螺纹公差：8g |
机械性能等级：3.6 |
产品等级：C级 |
||||||
|
公称长度l的商品规格系列： mm |
||||||||
|
公称 |
300 |
400 |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
|
1800 |
2000 |
2300 |
2600 |
|
||||
|
质量 kg |
||||||||
|
螺纹规格d |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
M56 |
|
公称长度l /mm |
每1000件钢制品的质量 ≈ |
|||||||
|
300 |
540 |
|
|
|
|
|
|
|
|
400 |
700 |
1100 |
|
|
|
|
|
|
|
600 |
|
1600 |
2300 |
|
|
|
|
|
|
800 |
|
2100 |
3000 |
|
|
|
|
|
|
1000 |
|
2600 |
3700 |
5900 |
8600 |
|
|
|
|
1200 |
|
|
4400 |
7000 |
10300 |
|
|
|
|
1400 |
|
|
5200 |
8100 |
11800 |
16100 |
21200 |
|
|
1600 |
|
|
|
9200 |
13400 |
18300 |
24000 |
|
|
1800 |
|
|
|
|
15000 |
20500 |
27000 |
|
|
2000 |
|
|
|
|
16700 |
22700 |
29000 |
41300 |
|
2300 |
|
|
|
|
|
26000 |
34000 |
47200 |
|
2600 |
|
|
|
|
|
|
38000 |
53000 |
