关节轴承产品

轴承型号

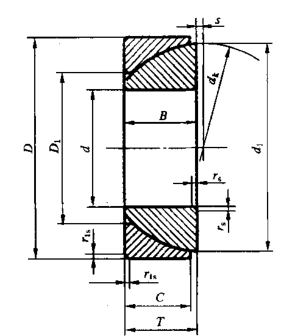

尺   寸  /mm

额定载荷/kN

α

/(°)

≈

重量

/kg

≈

安  装  尺  寸  /mm

正常系列

d

D

B

max

C

max

T

d_k

d1

≈

D1

max

S

≈

r_s，r_1s

min

动

静

d_a

min

d_b

max

D_a

max

D_c

min

r_c

max

GAC25S

25

47

15

14

15

42

41.5

32

1

0.6

50

250

3.5

0.148

31

29

41

43

1.0

GAC28S

28

52

16

15

16

47

46.5

36

1

1

60

300

3

0.186

GAC30S

30

55

17

16

17

50

49.5

37

2

1

63

315

3

0.208

36

34

49

51

1.0

GAC32S

32

58

17

16

17

52

51.5

40

2

1

71

354

3

0.241

GAC35S

35

62

18

17

18

56

55.5

43

2

1

78

390

3

0.268

41

39

56

57

1.0

GAC40S

40

68

19

18

19

61

60.5

48

2

1

92

463

3

0.327

46

44

62

63

1.0

GAC45S

45

75

20

19

20

67

66.5

54

3

12

108

540

3

0.416

51

50

69

70

1.0

GAC50S

50

80

20

19

20

74

73.5

60

4

1

123

618

3

0.455

56

56

74

75

1.0

GAC55S

55

90

23

22

23

81

80

63

5

1.5

144

721

3

0.645

62

60

83

83

1.0

GAC60S

60

95

23

22

23

87

86

69

5

1.5

163

817

3

0.714

67

67

88

89

1.0

GAC65S

65

100

23

22

23

93

92

77

6

1.5

180

905

2.5

0.759

72

72

93

95

1.0

GAC70S

70

110

25

24

25

102

101

83

7

1.5

206

1030

2.5

1.04

79

79

103

104

1.0

GAC75S

75

115

25

24

25

106

105

87

7

1.5

220

1129

2.5

1.12

84

84

108

109

1.0

GAC80S

80

125

29

27

29

115

113.5

92

9

1.5

258

1290

2.5

1.54

89

87

118

117

1.0

GAC85S

85

130

29

27

29

121

119

98

10

1.5

284

1422

2.5

1.61

94

94

123

124

1.0

GAC90S

90

140

32

30

32

129

127

104

11

2

316

1580

2.5

2.09

99

97

131

130

1.5

GAC95S

95

145

32

30

32

133

131.5

109

9

2

350

1750

2.5

2.22

104

104

136

137

1.5

GAC100S

100

150

32

31

32

141

138.5

115

12

2

384

1923

2

2.34

110

110

141

143

1.5

GAC105S

105

160

35

33

35

149

146.5

120

13

2.5

423

2116

2

2.93

115

113

151

150

2

GAC110S

110

170

38

36

38

158

155

127

14

2.5

463

2318

2

3.68

120

116

161

157

2

GAC120S

120

180

38

37

38

169

165

137

16

2.5

547

2735

2

3.97

131

131

171

170

2

GAC130S

130

200

45

43

45

188

184

149

18

2.5

710

3550

1

5.92

GAC140S

140

210

45

43

45

198

194

162

19

2.5

740

3740

1

6.33

GAC150S

150

225

48

46

48

211

207

172

20

3

850

4270

1

8.01

GAC160S

160

240

51

49

51

225

221

183

20

3

970

4850

1

9.42

GAC170S

170

260

57

55

57

246

242

195

21

3

1190

5950

1

12.3

GAC180S

180

280

64

61

64

260

256

207

21

3

1395

6970

1

17.4

GAC190S

190

290

64

62

64

275

270

213

26

3

1500

7500

1.5

18.2

GAC200S

200

310

70

66

70

290

285

230

26

3

1680

8420

1

22.5

注：1.dk为参考尺寸

   2.相应的最大倒角尺寸按GB/T 274-2000中表1的规定。
