平头铆螺母(GB/T 17880.1—1999)
平头铆螺母(GB/T 17880.1—1999)
|

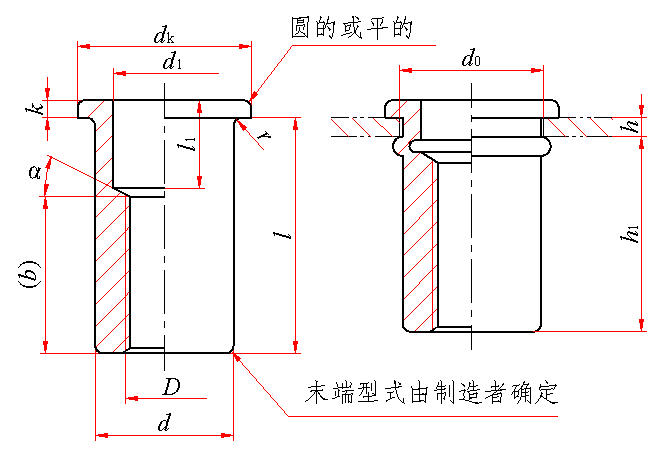

平头铆螺母(GB/T17880.1—1999)mm |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||||
|
b＝(1.25～1.5)D；α—由制造者确定；允许在支承面和(或)d圆周表面制出花纹，其型式与尺寸由制造者确定。 L为最大值；技术条件按GB/T 17880.6的规定。 |
|||||||||||
|
标记示例： 螺纹规格D＝M8、长度规格l＝15mm、材料为ML10、表面镀锌钝化的平头铆螺母的标记示例： 铆螺母 GB/T 17880.1 M8×15 |
|||||||||||
|
螺纹规格 |
d
|
d1 H12 |
dk max |
k |
r |
l max |
l1 参考 |
d0
|
h1 参考 |
铆接厚度 h 推荐 |
|
|
粗牙 D |
细牙 D×P |
||||||||||
|
M3 |
— |
5 |
4.0 |
8 |
0.8 |
0.2 |
7.5 |
3.3 |
5 |
5.8 |
0.25～1.0 |
|
5 |
4.0 |
8 |
0.8 |
0.2 |
8.5 |
4.3 |
5 |
5.8 |
1.0～2.0 |
||
|
5 |
4.0 |
8 |
0.8 |
0.2 |
9.5 |
5.3 |
5 |
5.8 |
2.0～3.0 |
||
|
5 |
4.0 |
8 |
0.8 |
0.2 |
10.5 |
6.3 |
5 |
5.8 |
3.0～4.0 |
||
|
M4 |
— |
6 |
4.8 |
9 |
0.8 |
0.2 |
9.0 |
3.3 |
6 |
7.5 |
0.25～1.0 |
|
6 |
4.8 |
9 |
0.8 |
0.2 |
10.0 |
4.3 |
6 |
7.5 |
1.0～2.0 |
||
|
6 |
4.8 |
9 |
0.8 |
0.2 |
11.0 |
5.3 |
6 |
7.5 |
2.0～3.0 |
||
|
6 |
4.8 |
9 |
0.8 |
0.2 |
12.0 |
6.3 |
6 |
7.5 |
3.0～4.0 |
||
|
M5 |
— |
7 |
5.6 |
10 |
1.0 |
0.2 |
11.0 |
4.0 |
7 |
9.3 |
0.25～1.0 |
|
7 |
5.6 |
10 |
1.0 |
0.2 |
12.0 |
5.0 |
7 |
9.3 |
1.0～2.0 |
||
|
7 |
5.6 |
10 |
1.0 |
0.2 |
13.0 |
6.0 |
7 |
9.3 |
2.0～3.0 |
||
|
7 |
5.6 |
10 |
1.0 |
0.2 |
14.0 |
7.0 |
7 |
9.3 |
3.0～4.0 |
||
|
M6 |
— |
9 |
7.5 |
12 |
1.5 |
0.2 |
13.5 |
5.5 |
9 |
11 |
0.5～1.5 |
|
9 |
7.5 |
12 |
1.5 |
0.2 |
15.0 |
7.0 |
9 |
11 |
1.5～3.0 |
||
|
9 |
7.5 |
12 |
1.5 |
0.2 |
16.5 |
8.5 |
9 |
11 |
3.0～4.5 |
||
|
9 |
7.5 |
12 |
1.5 |
0.2 |
18.0 |
10.0 |
9 |
11 |
4.5～6.0 |
||
|
M8 |
— |
11 |
9.2 |
14 |
1.5 |
0.3 |
15.0 |
6.0 |
11 |
12.3 |
0.5～1.5 |
|
11 |
9.2 |
14 |
1.5 |
0.3 |
16.5 |
7.5 |
11 |
12.3 |
1.5～3.0 |
||
|
11 |
9.2 |
14 |
1.5 |
0.3 |
18.0 |
9.0 |
11 |
12.3 |
3.0～4.5 |
||
|
11 |
9.2 |
14 |
1.5 |
0.3 |
19.5 |
10.5 |
11 |
12.3 |
4.5～6.0 |
||
|
M10 |
M10×1 |
13 |
11 |
16 |
1.8 |
0.3 |
18.0 |
6.8 |
13 |
15.0 |
0.5～1.5 |
|
13 |
11 |
16 |
1.8 |
0.3 |
19.5 |
8.3 |
13 |
15.0 |
1.5～3.0 |
||
|
13 |
11 |
16 |
1.8 |
0.3 |
21.0 |
9.8 |
13 |
15.0 |
3.0～4.5 |
||
|
13 |
11 |
16 |
1.8 |
0.3 |
22.5 |
11.3 |
13 |
15.0 |
4.5～6.0 |
||
|
M12 |
M12×1.5 |
15 |
13 |
18 |
1.8 |
0.3 |
21.0 |
7.3 |
15 |
17.5 |
0.5～1.5 |
|
15 |
13 |
18 |
1.8 |
0.3 |
22.5 |
8.8 |
15 |
17.5 |
1.5～3.0 |
||
|
15 |
13 |
18 |
1.8 |
0.3 |
24.0 |
10.3 |
15 |
17.5 |
3.0～4.5 |
||
|
15 |
13 |
18 |
1.8 |
0.3 |
25.5 |
11.8 |
15 |
17.5 |
4.5～6.0 |
||
|
公称长度l的商品规格系列：mm |
||||||||
|
公称 |
7.5 |
8.5 |
9.0 |
9.5 |
10.0 |
10.5 |
11.0 |
12.0 |
|
13.0 |
13.5 |
14.0 |
15.0 |
16.5 |
18.0 |
19.5 |
21.0 |
|
|
22.5 |
24.0 |
25.5 |
|
|||||
|
质量kg |
|||||||||
|
螺纹规格 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M10×1 |
M12 |
M12×1.5 |
|
长度规格/mm |
每1000件钢制品的质量≈ |
||||||||
|
7.5 |
0.926 |
|
|
|
|
|
|
|
|
|
8.5 |
0.981 |
|
|
|
|
|
|
|
|
|
9.0 |
— |
1.425 |
|
|
|
|
|
|
|
|
9.5 |
1.037 |
— |
|
|
|
|
|
|
|
|
10.0 |
— |
1.505 |
|
|
|
|
|
|
|
|
10.5 |
1.092 |
— |
|
|
|
|
|
|
|
|
11.0 |
|
1.585 |
2.176 |
|
|
|
|
|
|
|
12.0 |
|
1.664 |
2.285 |
|
|
|
|
|
|
|
13.0 |
|
|
2.394 |
|
|
|
|
|
|
|
13.5 |
|
|
— |
4.490 |
|
|
|
|
|
|
14.0 |
|
|
2.503 |
— |
|
|
|
|
|
|
15.0 |
|
|
|
4.719 |
5.532 |
|
|
|
|
|
16.5 |
|
|
|
4.947 |
5.868 |
|
|
|
|
|
18.0 |
|
|
|
5.176 |
6.204 |
9.993 |
9.516 |
|
|
|
19.5 |
|
|
|
|
6.540 |
10.437 |
9.960 |
|
|
|
21.0 |
|
|
|
|
|
10.881 |
10.404 |
13.844 |
13.503 |
|
22.5 |
|
|
|
|
|
11.325 |
10.848 |
14.362 |
14.021 |
|
24.0 |
|
|
|
|
|
|
|
14.880 |
14.539 |
|
25.5 |
|
|
|
|
|
|
|
15.398 |
15.057 |
