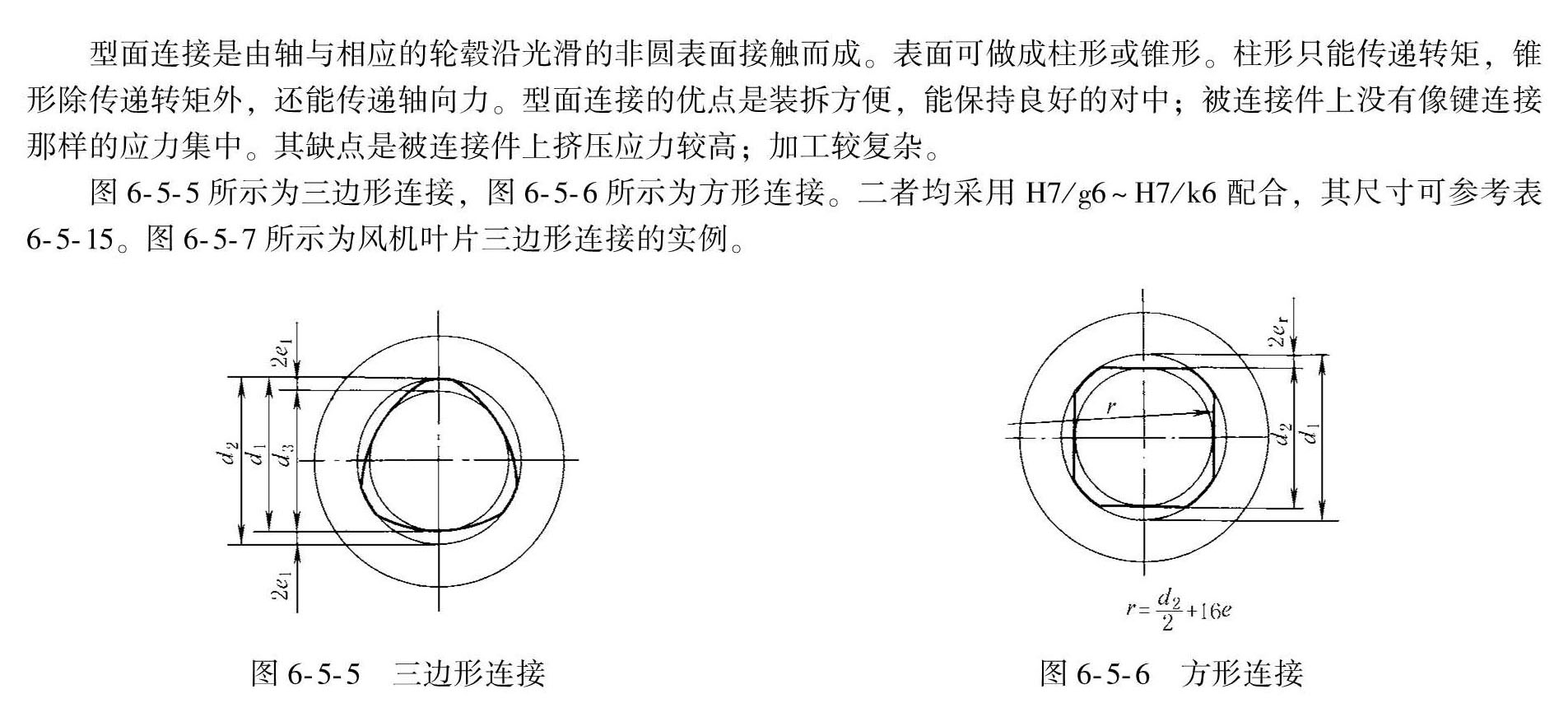

型面连接
型面连接

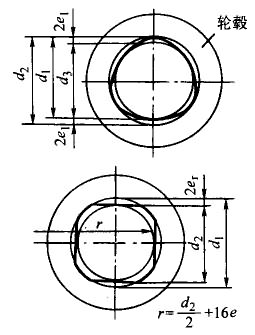

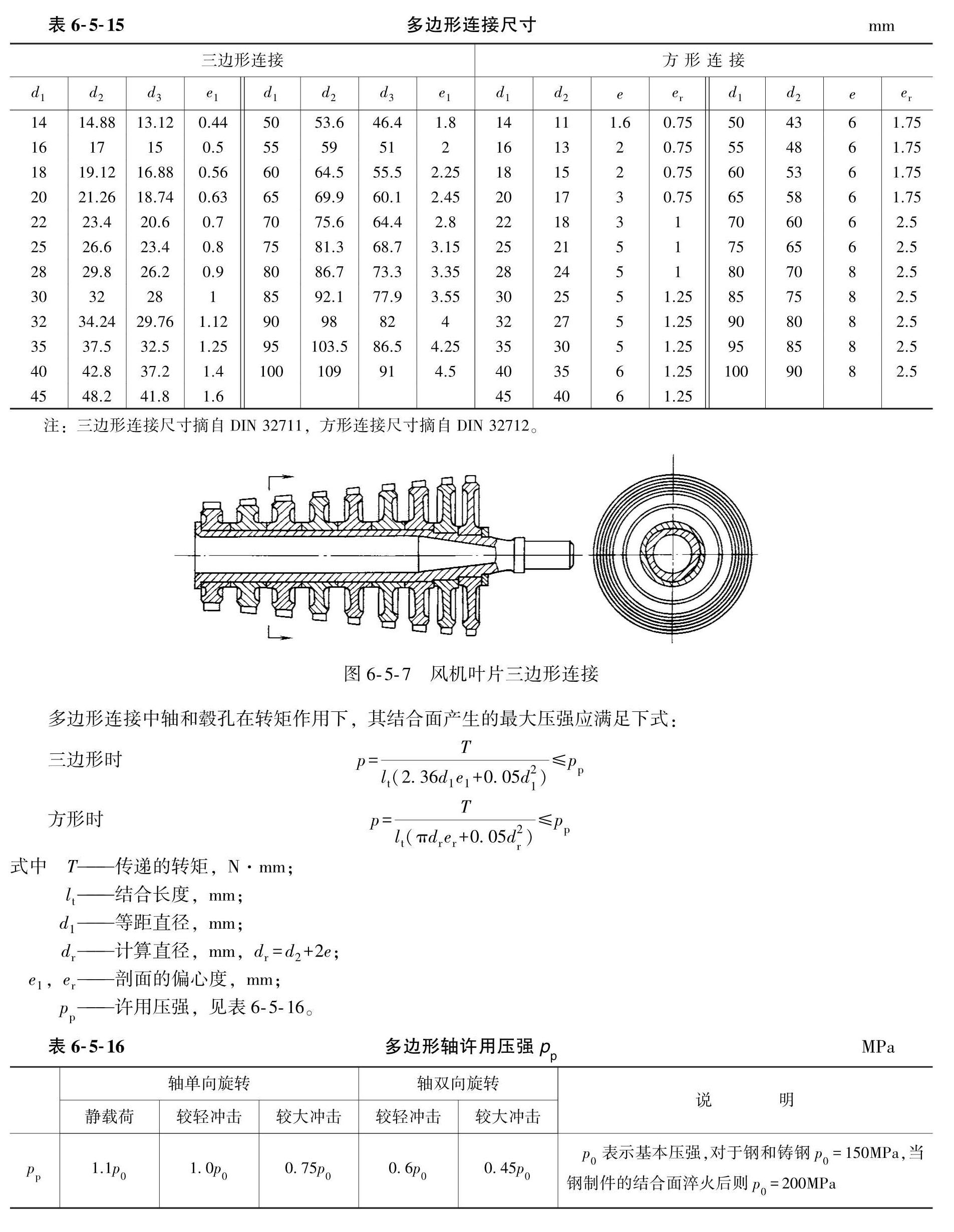

型面连接尺寸
注：表中给出德国标准供参考。
| P3G DIN 32711 | P4C DIN 32712 | ||||||
|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | e1 | d1 | d2 | e | er |
| 14 | 14.88 | 13.12 | 0.44 | 14 | 11 | 1.6 | 0.75 |
| 16 | 17 | 15 | 0.5 | 16 | 13 | 2 | 0.75 |
| 18 | 19.12 | 16.88 | 0.56 | 18 | 15 | 2 | 0.75 |
| 20 | 21.26 | 18.74 | 0.63 | 20 | 17 | 3 | 0.75 |
| 22 | 23.4 | 20.6 | 0.7 | 22 | 18 | 3 | 1 |
| 25 | 26.6 | 23.4 | 0.8 | 25 | 21 | 5 | 1 |
| 28 | 29.8 | 26.2 | 0.9 | 28 | 24 | 5 | 1 |
| 30 | 32 | 28 | 1 | 30 | 25 | 5 | 1.25 |
| 32 | 34.24 | 29.76 | 1.12 | 32 | 27 | 5 | 1.25 |
| 35 | 37.5 | 32.5 | 1.25 | 35 | 30 | 5 | 1.25 |
| 40 | 42.8 | 37.2 | 1.4 | 40 | 35 | 6 | 1.25 |
| 45 | 48.2 | 41.8 | 1.6 | 45 | 40 | 6 | 1.25 |
| 50 | 53.6 | 46.4 | 1.8 | 50 | 43 | 6 | 1.75 |
| 55 | 59 | 51 | 2 | 55 | 48 | 6 | 1.75 |
| 60 | 64.5 | 55.5 | 2.25 | 60 | 53 | 6 | 1.75 |
| 65 | 69.9 | 60.1 | 2.45 | 65 | 58 | 6 | 1.75 |
| 70 | 75.6 | 64.4 | 2.8 | 70 | 60 | 6 | 2.5 |
| 75 | 81.3 | 68.7 | 3.15 | 75 | 65 | 6 | 2.5 |
| 80 | 86.7 | 73.3 | 3.35 | 80 | 70 | 8 | 2.5 |
| 85 | 92.1 | 77.9 | 3.55 | 85 | 75 | 8 | 2.5 |
| 90 | 98 | 82 | 4 | 90 | 80 | 8 | 2.5 |
| 95 | 103.5 | 86.5 | 4.25 | 95 | 85 | 8 | 2.5 |
| 100 | 109 | 91 | 4.5 | 100 | 90 | 8 | 2.5 |
