紧定套(JB/T7919.2-2017)

常用滚动轴承尺寸及性能参数分页导航

本页导航 广告链接

紧定套(JB/T7919.2-2017)

紧定套 (GB/T 9160.1-2017)

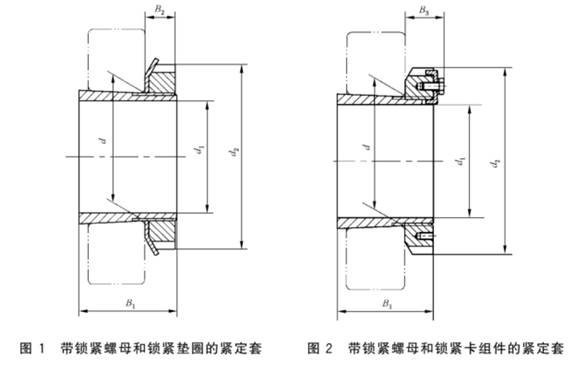

本紧定套适用于安装锥孔(镀度为1:12)轴承于无轴肩的圆柱形轴上。
尺寸 /mm													重量/kg		基本代号		组成零件
d₁		d		d₂		B₁			B₂		G		W ≈		紧定套		紧定衬套		锁紧螺母		锁紧垫圈
12		15		25		19			6		M15×1		—		H 202		A 202 X		KM 02		MB 02
				25		22			6		M15×1		—		H 302		A 302 X		KM 02		MB 02
				25		25			6		M15×1		—		H 2302		A 2302 X		KM 02		MB 02

14		17		28		20			6		M17×1		—		H 203		A 202 X		KM 03		MB 03
				28		24			6		M17×1		—		H 303		A 303 X		KM 03		MB 03
				28		27			6		M17×1		—		H 2303		A 2303 X		KM 03		MB 03

17		20		32		24			7		M20×1		—		H 204		A 204 X		KM 04		MB 04
				32		28			7		M20×1		—		H 304		A 304 X		KM 04		MB 04
				32		31			7		M20×1		—		H 2304		A 2304 X		KM 04		MB 04

20		25		38		26			8		M26×1.5		0.070		H 205		A 205 X		KM 05		MB 05
				38		29			8		M25×1.5		0.075		H 305		A 305 X		KM 05		MB 05
				38		35			8		M25×1.5		—		H 2305		A 2305 X		KM 05		MB 05

25		30		45		27			8		M30×1.5		0.10		H 206		A 206 X		KM 06		MB 06
				45		31			8		M30×1.5		0.11		H 306		A 306 X		KM 06		MB 06
				45		38			8		M30×1.5		—		H 2306		A 2306 X		KM 06		MB 06

30		35		52		29			9		M35×1.5		0.13		H 207		A 207 X		KM 07		MB 07
				52		35			9		M35×1.5		0.14		H 307		A 307 X		KM 07		MB 07
				52		43			9		M35×1.5		0.17		H 2307		A 2307 X		KM 07		MB 07

35		40		58		31			10		M40×1.5		0.17		H 208		A 208 X		KM 08		MB 08
				58		36			10		M40×1.5		0.19		H 308		A 308 X		KM 08		MB 08
				58		46			10		M40×1.5		0.22		H 2308		A 2308 X		KM 08		MB 08

40		45		65		33			11		M45×1.5		0.23		H 209		A 209 X		KM 09		MB 09
				65		39			11		M45×1.5		0.25		H 309		A 309 X		KM 09		MB 09
				65		50			11		M45×1.5		0.28		H 2309		A 2309 X		KM 09		MB 09

45		50		70		35			12		M50×1.5		0.27		H 210		A 210 X		KM 10		MB 10
				70		42			12		M50×1.5		0.30		H 310		A 310 X		KM 10		MB 10
				70		55			12		M50×1.5		0.36		H 2310		A 2310 X		KM 10		MB 10

50		55		75		37			12		M55×2		0.31		H 211		A 211 X		KM 11		MB 11
				75		45			12		M55×2		0.42		H 311		A 311 X		KM 11		MB 11
				75		59			12		M55×2		0.42		H 2311		A 2311 X		KM 11		MB 11

55		60		80		38			13		M60×2		0.35		H 212		A 212 X		KM 12		MB 12
				80		47			13		M60×2		0.39		H 312		A 312 X		KM 12		MB 12
				80		62			13		M60×2		0.48		H 2312		A 2312 X		KM 12		MB 12

60		65		85		40			14		M65×2		0.40		H 213		A 213 X		KM 13		MB 13
				85		50			14		M65×2		0.46		H 313		A 313 X		KM 13		MB 13
				85		65			14		M65×2		0.55		H 2313		A 2313 X		KM 13		MB 13

		70		92		41			14		M70×2		—		H 214		A 214 X		KM 14		MB 14
				92		52			14		M70×2		—		H 314		A 314 X		KM 14		MB 14
				92		68			14		M70×2		0.90		H 2314		A 2314 X		KM 14		MB 14

65		75		98		43			15		M75×2		0.71		H 215		A 215 X		KM 15		MB 15
				98		55			15		M75×2		0.83		H 315		A 315 X		KM 15		MB 15
				98		73			15		M75×2		1.05		H 2315		A 2315 X		KM 15		MB 15

70		80		105		46			17		M80×2		0.88		H 216		A 216 X		KM 16		MB 16
				105		59			17		M80×2		1.00		H 316		A 316 X		KM 16		MB 16
				105		78			17		M80×2		1.30		H 2316		A 2316 X		KM 16		MB 16

75		85		110		50			18		M85×2		1.00		H 217		A 217 X		KM 17		MB 17
				110		63			18		M85×2		1.20		H 317		A 317 X		KM 17		MB 17
				110		82			18		M85×2		1.45		H 2317		A 2317 X		KM 17		MB 17

80		90		120		52			18		M90×2		1.20		H 218		A 218 X		KM 18		MB 18
				120		65			18		M90×2		1.35		H 318		A 318 X		KM 18		MB 18
				120		86			18		M90×2		1.70		H 2318		A 2318 X		KM 18		MB 18

85		95		125		55			19		M95×2		1.35		H 219		A 219 X		KM 19		MB 19
				125		68			19		M95×2		1.55		H 319		A 319 X		KM 19		MB 19
				125		90			19		M95×2		1.90		H 2319		A 2319 X		KM 19		MB 19

90		100		130		58			20		M100×2		1.50		H 220		A 220 X		KM 20		MB 20
				130		71			20		M100×2		1.70		H 320		A 320 X		KM 20		MB 20
				130		76			20		M100×2		—		H 3120		A 3120 X		KM 20		MB 20
				130		97			20		M100×2		2.15		H 2320		A 2320 X		KM 20		MB 20
				130		80			20		M100×2		—		H 24020		A 24020		KM 20		MB 20
				130		94			20		M100×2		—		H 24120		A 24120		KM 20		MB 20

95		105		140		60			20		M105×2		1.70		H 221		A 221 X		KM 21		MB 21
				140		74			20		M105×2		1.95		H 321		A 321 X		KM 21		MB 21
				140		80			20		M105×2		—		H 3121		A 3121 X		KM 21		MB 21
				140		101			20		M105×2		—		H 2321		A 2321 X		KM 21		MB 21

100		110		145		63			21		M110×2		1.90		H 222		A 222 X		KM 22		MB 22
				145		77			21		M110×2		2.20		H 322		A 322 X		KM 22		MB 22
				145		81			21		M110×2		—		H 3122		A 3122 X		KM 22		MB 22
				145		105			21		M110×2		2.75		H 2322		A 2322 X		KM 22		MB 22
				145		90			21		M110×2		—		H 24022		A 24022		KM 22		MB 22
				145		99			21		M110×2		—		H 24122		A 24122		KM22		MB 22

110		120		145		72			22		M120×2		1.95		H 3024		A 3024		KML 24		MBL 24
				155		88			22		M120×2		2.65		H 3124		A 3124 X		KM 24		MB 24
				155		112			22		M120×2		3.20		H 2324		A 2324 X		KM 24		MB 24
				145		60			22		M120×2		—		H 3924		A 3924 X		KML 24		MBL 24
				145		91			22		M120×2		—		H 24024		A 24024		KML 24		MBL 24
				155		111			22		M120×2		—		H 24124		A 24124		KML 24		MB 24

115		130		155		80			23		M130×2		2.85		H 3026		A 3026		KML 26		MBL 26
				165		92			23		M130×2		3.65		H 3126		A 3126 X		KM 26		MB 26
				165		121			23		M130×2		4.60		H 2326		A 2326 X		KM 26		MB 26
				155		65			23		M130×2		—		H 3926		A 3926 X		KML 26		MBL 26
				155		102			23		M130×2		—		H 20426		A 24026		KML 26		MBL 26
				165		113			23		M130×2		—		H 24126		A 24126		KML 26		MB 26

125		140		165		82			24		M140×2		3.15		H 3028		A 3028		KML 28		MBL 28
				180		97			24		M140×2		4.35		H 3128		A 3128 X		KM 28		MB 28
				180		131			24		M140×2		5.55		H 2328		A 2328 X		KM 28		MB 28
				165		66			24		M140×2		—		H 3928		A 3928X		KML 28		MBL 28
				165		103			24		M140×2		—		H 20428		A 24028		KML 28		MBL 28
				180		119			24		M140×2		—		H 24128		A 24128		KM 28		MB 28

135		150		180		87			26		M150×2		3.90		H 3030		A 3030		KML 30		MBL 30
				195		111			26		M150×2		5.50		H 3130		A 3130 X		KM 30		MB 30
				195		139			26		M150×2		6.60		H 2330		A 2330 X		KM 30		MB 30
				180		76			26		M150×2		—		H 3930		A 3930X		KML 30		MBL 30
				180		112			26		M150×2		—		H 24030		A 24030		KML 30		MBL 30
				195		137			26		M150×2		—		H 24130		A 24130		KM 30		MB 30

140		160		190		93			28		M160×3		5.20		H 3032		A 3032		KML 32		MBL 32
				210		119			28		M160×3		7.65		H 3132		A 3132 X		KM 32		MB 32
				210		147			28		M160×3		9.15		H 2332		A 2332 X		KM 32		MB 32
				190		78			28		M160×3		—		H 3932		A 3932		KML 32		MBL 32
				190		118			28		M160×3		—		H 24032		A 24032		KML 32		MBL 32
				210		148			28		M160×3		—		H 24132		A 24132		KM 32		MB 32

150		170		200		101			29		M170×3		6.00		H 3034		A 3034		KML 34		MBL 34
				220		122			29		M170×3		8.40		H 3134		A 3134 X		KM 34		MB 34
				220		154			29		M170×3		10.0		H 2334		A 2334 X		KM 34		MB 34
				200		79			29		M170×3		—		H 3934		A 3934 X		KML 34		MBL 34
				200		130			29		M170×3		—		H 24034		A 24034		KML 34		MBL 34
				220		149			29		M170×3		—		H 24134		A 24134		KM 34		MB 34

160		180		210		109			30		M180×3		6.85		H 3036		A 3036		KML 36		MBL 36
				230		131			30		M180×3		9.50		H 3136		A 3136 X		KM 36		MB 36
				230		161			30		M180×3		11.0		H 2336		A 2336 X		KM 36		MB 36
				210		87			30		M180×3		—		H 3936		A 3936 X		KML 36		MBL 36
				210		140			30		M180×3		—		H 24036		A 24036		KML 36		MBL 36
				230		159			30		M180×3		—		H 24136		A 24136		KM 36		MB3

170		190		220		112			31		M190×3		7.45		H 3038		A 3038		KML 38		MBL 38
尺寸 /mm												重量/kg		基本代号		组成零件
d₁	d		d₂		B₁		B₂	B₃		G		W ≈		紧定套		紧定衬套		锁紧螺母		锁紧垫圈		锁紧卡
170	190		240		141		31	—		M190×3		11.0		H 3138		A 3138 X		KM 38		MB 38		—
			240		169		31	—		M190×3		12.5		H 2338		A 2338 X		KM 38		MB 38		—
			220		89		31	—		M190×3		—		H 3938		A 3938 X		KML 38		MBL 38		—
			220		143		31	—		M190×3		—		H 24038		A 24038		KML 38		MBL 38		—
			240		172		31	—		M190×3		—		H 24138		A 24138		KM 38		MB 38		—

180	200		240		120		32	—		M200×3		9.20		H 3040		A 3040		KML 40		MBL 40		—
			250		150		32	—		M200×3		12.0		H 3140		A 3140 X		KM 40		MB 40		—
			250		176		32	—		M200×3		14.0		H 2340		A 2340 X		KM 40		MB 40		—
			240		98		32	—		M200×3		—		H 3940		A 3940 X		KML 40		MBL 40		—
			240		153		32	—		M200×3		—		H 24040		A 24040		KML 40		MBL 40		—
			250		185		32	—		M200×3		—		H 24140		A 24140		KM 40		MB 40		—

200	220		260		126		—	41		Tr220×4		10.5		H 3044		A 3044		HML 44		—		MSL 44
			280		161		35	—		Tr220×4		15.0		H 3144		A 3144		HM 44		MB 44		—
			280		186		35	—		Tr220×4		17.0		H 2344		A 2344		HM 44		MB 44		—
			260		96		—	41		Tr220×4		—		H 3944		A 3944		HML 44		—		MSL 44
			260		162		—	41		Tr220×4		—		H 24044		A 24044		HML 44		—		MSL 44
			280		199		—	44		Tr220×4		—		H 24144		A 24144		HM 44		—		MS 44

220	240		290		133		—	46		Tr240×4		13.0		H 3048		A 3048		HML 48		—		MSL 48
			300		172		37	—		Tr240×4		18.0		H 3148		A 3148		HM 48		MB 48		—
			300		199		37	—		Tr240×4		20.0		H 2348		A 2348		HM 48		MB 48		—
			290		101		—	46		Tr240×4		—		H 3948		A 3948		HML 48		—		MSL 48
			290		167		—	46		Tr240×4		—		H 24048		A 24048		HML 48		—		MSL 48
			300		212		—	46		Tr240×4		—		H 24148		A 24148		HM 48		—		MS 44

240	260		310		145		—	46		Tr260×4		15.5		H 3052		A 3052		HML 52		—		MSL 52
			330		190		39	—		Tr260×4		22.5		H 3152		A 3152		HM 52		MB 52		—
			330		211		39	—		Tr260×4		25.0		H 2352		A 2352		HM 52		MB 52		—
			210		116		—	46		Tr260×4		—		H 3952		A 3952		HML 52		—		MSL 52
			310		190		—	46		Tr260×4		—		H 24052		A 24052		HML 52		—		MSL 52
			330		235		—	49		Tr260×4		—		H 24152		A 24152		HM 52		—		MS 52

260	280		330		152		—	50		Tr280×4		17.5		H 3056		A 3056		HML 56		—		MSL 56
			350		195		41	—		Tr280×4		25.0		H 3156		A 3156		HM 56		MB 56		—
			350		224		41	—		Tr280×4		26.5		H 2356		A 2356		HM 56		MB 56		—
			330		121		—	50		Tr280×4		—		H 3956		A 3956		HML 56		—		MSL 56
			330		195		—	50		Tr280×4		—		H 24056		A 24056		HML 56		—		MSL 56
			350		238		—	51		Tr280×4		—		H 24156		A 24156		HM 56		—		MS 52

280	300		360		168		—	54		Tr300×4		23.0		H 3060		A 3060		HML 60		—		MSL 60
			380		208		—	53		Tr300×4		30.0		H 3160		A 3160		HM 60		—		MS 60
			380		240		—	53		Tr300×4		—		H 3260		A 3260		HM 60		—		MS 60
			360		140		—	54		Tr300×4		—		H 3960		A 3960		HML 60		—		MSL 60
			360		200		—	54		Tr300×4		—		H 24060		A 24060		HML 60		—		MSL 60
			380		258		—	53		Tr300×4		—		H 24160		A 24160		HM 60		—		MS 60

300	320		380		171		—	55		Tr320×5		24.5		H 3064		A 3064		HML 64		—		MSL 64
			400		226		—	56		Tr320×5		35.0		H 3164		A 3164		HM 64		—		MS 64
			400		258		—	56		Tr320×5		39.0		H 3264		A 3264		HM 64		—		MS 64
			380		140		—	55		Tr320×5		—		H 3964		A 3964		HML 64		—		MSL 64
			380		220		—	55		Tr320×5		—		H 24064		A 24064		HML 64		—		MSL 64
			400		278		—	56		Tr320×5		—		H 24164		A 24164		HM 64		—		MS 64

320	340		400		187		—	58		Tr340×5		28.5		H 3068		A 3068		HML 68		—		MSL 64
			440		254		—	72		Tr340×5		—		H 3168		A 3168		HM 68		—		MS 68
			440		288		—	72		Tr340×5		—		H 3268		A 3268		HM 68		—		MS 68
			400		144		—	58		Tr340×5		—		H 3968		A 3968		HML 68		—		MSL 64
			400		244		—	58		Tr340×5		—		H 24068		A 24068		HML 68		—		MSL 64
			440		317		—	72		Tr340×5		—		H 24168		A 24168		HM 68		—		MS 68

340	360		420		188		—	58		Tr360×5		30.5		H 3072		A 3072		HML 72		—		MSL 72
			460		259		—	75		Tr360×5		—		H 3172		A 3172		HM 72		—		MS 68
			460		299		—	75		Tr360×5		—		H 3272		A 3272		HM 72		—		MS 68
			420		144		—	58		Tr360×5		—		H 3972		A 3972		HML 72		—		MSL 72
			420		244		—	58		Tr360×5		—		H 24072		A 24072		HML 72		—		MSL 72
			460		321		—	75		Tr360×5		—		H 24172		A 24172		HM 72		—		MS 68

360	380		450		193		—	62		Tr380×5		36.0		H 3076		A 3076		HML 76		—		MSL 76
			490		264		—	77		Tr380×5		—		H 3176		A 3176		HM 76		—		MS 76
			490		310		—	77		Tr380×5		—		H 3276		A 3276		HM 76		—		MS 76
			450		164		—	62		Tr380×5		—		H 3976		A 3976		HML 76		—		MSL 76
			450		248		—	62		Tr380×5		—		H 24076		A 24076		HML 76		—		MSL 76
			490		323			77		Tr380×5		—		H 24176		A 24176		HM 76		—		MS 76

380	400		470		210		—	66		Tr400×5		41.5		H 3080		A 3080		HML 80		—		MSL 76
			520		272		—	82		Tr400×5		—		H 3180		A 3180		HM 80		—		MS 80
			520		328		—	82		Tr400×5		—		H 3280		A 3280		HM 80		—		MS 80
			470		168		—	66		Tr400×5		—		H 3980		A 3980		HML 80		—		MSL 76
			470		272		—	66		Tr400×5		—		H 24080		A 24080		HML 80		—		MSL 76
			520		332		—	82		Tr400×5		—		H 24180		A 24180		HM 80		—		MS 80

400	420		490		212		—	66		Tr420×5		43.5		H 3084		A 3084		HML 84		—		MSL 84
			540		304		—	90		Tr420×5		—		H 3184		A 3184		HM 84		—		MS 80
			540		352		—	90		Tr420×5		—		H 3284		A 3284		HM 84		—		MS 80
			490		168		—	66		Tr420×5		—		H 3984		A 3984		HML 84		—		MSL 84
			490		274		—	66		Tr420×5		—		H 24084		A 24084		HML 84		—		MSL 84
			540		372		—	90		Tr420×5		—		H 24184		A 24184		HM 84		—		MS 80

410	440		520		228		—	77		Tr440×5		—		H 3088		A 3088		HML 88		—		MSL 88
			560		307		—	90		Tr440×5		—		H 3188		A 3188		HM 88		—		MS 88
			560		361		—	90		Tr440×5		—		H 3288		A 3288		HM 88		—		MS 88
			520		189		—	77		Tr440×5		—		H 3988		A 3988		HML 88		—		MSL 88
			520		294		—	77		Tr440×5		—		H 24088		A 24088		HML 88		—		MSL 88
			560		372			90		Tr440×5		—		H 24188		A 24188		HM 88		—		MS88

430	460		540		234		—	77		Tr460×5		—		H 3092		A 3092		HML 92		—		MSL 88
			580		326		—	95		Tr460×5		—		H 3192		A 3192		HM 92		—		MS 88
			580		382		—	95		Tr460×5		—		H 3292		A 3292		HM 92		—		MS 88
			540		189		—	77		Tr460×5		—		H 3992		A 3992		HML 92		—		MSL 88
			540		300		—	77		Tr460×5		—		H 24092		A 24092		HML 92		—		MSL 88
			580		398		—	95		Tr460×5		—		H 24192		A 24192		HM 92		—		MS 88

450	480		560		237		—	77		Tr480×5		73.5		H 3096		A 3096		HML 96		—		MSL 96
			620		335		—	95		Tr480×5		—		H 3196		A 3196		HM 96		—		MS 96
			620		397		—	95		Tr480×5		—		H 3296		A 3296		HM 96		—		MS 96
			560		200		—	77		Tr480×5		—		H 3996		A 3996		HML 96		—		MSL 96
			560		301		—	77		Tr480×5		—		H 24096		A 24096		HML 96		—		MSL 96
			620		408		—	95		Tr480×5		—		H 24196		A 24196		HM 96		—		MS 96

470	500		580		247		—	85		Tr500×5		—		H 30/500		A 30/500		HML/500		—		MSL/500
			630		356		—	100		Tr500×5		—		H 31/500		A 31/500		HM/500		—		MS/500
			630		428		—	100		Tr500×5		—		H 32/500		A 32/500		HM/500		—		MS/500
			580		208		—	85		Tr500×5		—		H 39/500		A 39/500		HML/500		—		MSL/500
			580		309		—	85		Tr500×5		—		H 240/500		A 240/500		HML/500		—		MSL/500
			630		408		—	100		Tr500×5		—		H 241/500		A 241500		HM/500		—		MS/500

500	530		630		265		—	90		Tr530×5		—		H 30/530		A 30/530		HML/530		—		MSL/530
			670		364		—	105		Tr530×5		—		H 31/530		A 31/530		HM/530		—		MS/530
			670		447		—	105		Tr530×5		—		H 32/530		A 32/530		HM/530		—		MS/530
			630		216		—	90		Tr530×5		—		H 39/530		A 39/530		HML/530		—		MSL/530
			630		343		—	90		Tr530×5		—		H 240/530		A 240/530		HML/530		—		MSL/530
			670		440		—	105				—		H 241/530		A 241/530		HM/530		—		MS/530

530	560		650		282		—	97		Tr560×5		—		H 30/560		A 30/560		HML/560		—		MSL/560
			710		377		—	110		Tr560×5		—		H 31/560		A 31/560		HM/560		—		MS/560
			710		462		—	110		Tr560×5		—		H 32/560		A 32/560		HM/560		—		MS/560
			650		227		—	97		Tr560×5		—		H 39/560		A 39/560		HML/560		—		MSL/560
			650		358		—	97		Tr560×5		—		H 240/560		A 240/560		HML/560		—		MSL/560
			710		468		—	110		Tr560×5		—		H 241/560		A 241/560		HM/560		—		MS/560

560	600		700		289		—	97		Tr600×5		—		H 30/600		A 30/600		HML/600		—		MSL/600
			750		399		—	110		Tr600×5		—		H 31/600		A 31/600		HM/600		—		MS/600
			750		487		—	110		Tr600×5		—		H 32/600		A 32/600		HM/600		—		MS/600
			700		239		—	97		Tr600×5		—		H 39/600		A 39/600		HML/600		—		MSL/600
			700		377		—	97		Tr600×5		—		H 240/600		A 240/600		HML/600		—		MSL/600
			750		490		—	110		Tr600×5		—		H 241/600		A 241/600		HM/600		—		MS/600

600	630		730		301		—	97		Tr630×5		—		H 30/630		A 30/630		HML/630		—		MSL/630
			800		424		—	120		Tr630×5		—		H 31/630		A 31/630		HM/630		—		MS/630
			800		521		—	120		Tr630×5		—		H 32/630		A 32/630		HM/630		—		MS/630
			730		254		—	97		Tr630×5		—		H 39/630		A 39/630		HML/630		—		MSL/630
			730		395		—	97		Tr630×5		—		H 240/630		A 240/630		HML/630		—		MSL/630
			800		525		—	120		Tr630×5		—		H 241/630		A 241/630		HM/630		—		MS/630

630	670		780		324		—	102		Tr670×5		—		H 30/670		A 30/670		HML/670		—		MSL/670
			850		456		—	131		Tr670×5		—		H 31/670		A 31/670		HM/670		—		MS/670
			850		558		—	131		Tr670×5		—		H 32/670		A 32/670		HM/670		—		MS/670
			780		264		—	102		Tr670×5		—		H 39/670		A 39/670		HML/670		—		MSL/670
			780		418		—	102		Tr670×5		—		H 240/670		A 240/670		HML/670		—		MSL/670
			850		548		—	131		Tr670×5		—		H 241/60		A 241/670		HM/670		—		MS/670

670	710		830		342		—	112		Tr710×5		—		H 30/710		A 30/710		HML/710		—		MSL/710
			900		467		—	135		Tr710×5		—		H 31/710		A 31/710		HM/710		—		MS/710
			900		572		—	135		Tr710×5		—		H 32/710		A 32/710		HM/710		—		MS/710
			830		286		—	112		Tr710×5		—		H 39/710		A 39/710		HML/710		—		MSL/710
			830		438		—	112		Tr710×5		—		H 240/710		A 240/710		HML/710		—		MSL/710
			900		577		—	135		Tr710×5		—		H 241/710		A 241/710		HM/710		—		MS/710

710	750		870		356		—	112		Tr750×5		—		H 30/750		A 30/750		HML/750		—		MSL/750
			950		493		—	141		Tr750×5		—		H 31/750		A 31/750		HM/750		—		MS/710
			950		603		—	141		Tr750×5		—		H 32/750		A 32/750		HM/750		—		MS/710
			870		291		—	112		Tr750×5		—		H 39/750		A 39/750		HML/750		—		MSL/750
			870		460		—	112		Tr750×5		—		H 240/750		A 240/750		HML/750		—		MSL/750
			950		622		—	141		Tr750×5		—		H 241/750		A 241/750		HM/750		—		MS/750

750	800		920		366		—	112		Tr800×5		—		H 30/800		A 30/800		HML/800		—		MSL/800
			1000		505		—	141		Tr800×5		—		H 31/800		A 31/800		HM/800		—		MS/800
			1000		618		—	141		Tr800×5		—		H 32/800		A 32/800		HM/800		—		MS/800
			920		303		—	112		Tr800×5		—		H 39/800		A 39/800		HML/800		—		MSL/800
			920		475		—	112		Tr800×5		—		H 240/800		A 240/800		HML/800		—		MSL/800
			1000		627		—	141		Tr800×5		—		H 241/800		A 241/800		HM/800		—		MS/800

800	850		980		380		—	115		Tr850×5		—		H 30/850		A 30/850		HML/850		—		MSL/850
			1060		536		—	147		Tr850×5		—		H 31/850		A 31/850		HM/850		—		MS/850
			1060		651		—	147		Tr850×5		—		H 32/850		A 32/850		HM/850		—		MS/850
			980		308		—	115		Tr850×5		—		H 39/850		A 39/850		HML/850		—		MSL/850
			980		495		—	115		Tr850×5		—		H 240/850		A 240/850		HML/850		—		MSL/850
			1060		658		—	147		Tr850×5		—		H 241/850		A 241/850		HM/850		—		MS/850

850	900		1030		400		—	125		Tr900×5		—		H 30/900		A 30/900		HML/900		—		MSL/900
			1120		537		—	154		Tr900×5		—		H 31/900		A 31/900		HM/900		—		MS/900
			1120		660		—	154		Tr900×5		—		H 32/900		A 32/900		HM/900		—		MS/900
			1030		326		—	125		Tr900×5		—		H 39/900		A 39/900		HML/900		—		MSL/900
			1030		520		—	125		Tr900×5		—		H 240/900		A 240/900		HML/900		—		MSL/900
			1120		685		—	154		Tr900×5		—		H 241/900		A 241/900		HM/900		—		MS/900

900	950		1080		420		—	125		Tr950×5		—		H 30/950		A 30/950		HML/950		—		MSL/950
			1170		583		—	154		Tr950×5		—		H 31/950		A 31/950		HM/950		—		MS/950
			1170		675		—	154		Tr950×5		—		H 32/950		A 32/950		HM/950		—		MS/950
			1080		344		—	125		Tr950×5		—		H 39/950		A 39/950		HML/950		—		MSL/950
			1080		557		—	125		Tr950×5		—		H 240/950		A 240/950		HML/950		—		MSL/950
			1170		715		—			Tr950×5		—		H 241/950		A 241/950		HM/950		—		MS/950

950	1000		1140		430		—	125		Tr1000×5		—		H 30/1000		A 30/1000		HML/1000		—		MSL/1000
			1240		609		—	154		Tr1000×5		—		H 31/1000		A 31/1000		HM/1000		—		MS/1000
			1240		707		—	154		Tr1000×5		—		H 32/1000		A 32/1000		HM/1000		—		MS/1000
			1140		358		—	125		Tr1000×5		—		H 39/1000		A 39/1000		HML/1000		—		MSL/1000
			1140		562		—	125		Tr1000×5		—		H 240/1000		A 240/1000		HML/1000		—		MSL/1000
			1240		755		—	154		Tr1000×5		—		H 241/1000		A 241/1000		HM/1000		—		MS/1000

1000	1060		1200		447		—	125		Tr1060×5		—		H 30/1060		A 30/1060		HML/1060		—		MSL/1060
			1300		622		—	154		Tr1060×5		—		H 31/1060		A 31/1060		HM/1060		—		MS/1060
			1200		372		—	125		Tr1060×5		—		H 39/1060		A 39/1060		HML/1060		—		MSL/1060
			1200		588		—	125		Tr1060×5		—		H 240/1060		A 240/1060		HML/1060		—		MSL/1060
			1300		775		—	154		Tr1060×5		—		H 241/1060		A 241/1060		HM/1060		—		MS/1060

<- 上一项下一项 ->
